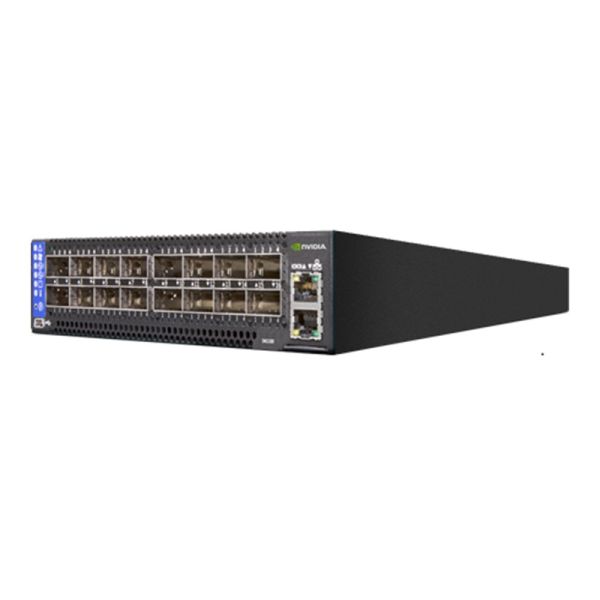

SN2100 100Gbe 16 Port Ethernet Switches With 3.2Tb/S Switch Capacity For Data Center Networks

Ask Lasest Price
Brand Name :	NVIDIA
Model Number :	SN2100
Price :	$6,000-10,000 / piece
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Add to Cart

Product Details
Company Profile

SN2100 100Gbe 16 Port Ethernet Switches With 3.2Tb/S Switch Capacity For Data Center Networks

Product Description

SN2100

SN2100 adopts a unique design to adapt to higher rack performance. Its design allows two switches to be placed side by side in a single 1RU slot in a 19-inch rack, thus providing high availability for the host. SN2100 can accommodate 16 100GbE ports, with a throughput of 1.6Tb/s and a processing capacity of 2.38Bpps.

joggle/interface	16 qsfp 28 100 gbe (maximum number of 100 gbe ports: 16; Maximum number of 50GbE ports: 32; 40GbE port upper limit quantity: 16; Maximum number of 25GbE ports: 64; Maximum number of 10GbE ports: 64)
thruput	3.2Tb/s
Number of packets/sec	2.38Bpps
delay	300ns
CPU	ATOM x86
System memory	8GB
SSD memory	16GB
Packet caching	16MB
Number of 100/100 management ports	1
Number of serial ports	1 RJ45
Number of USB ports	1 USB
Hot plug power supply quantity	no
Number of hot plug fans	no
Power Supply	50-60Hz; Input voltage range: 100-264V AC;; Input current range: 4.5-2.9A
Typical power consumption (ATIS)	94W
measure	1.72" x 7.87" x 20" (43.9 mm x 200 mm x 508 mm)
weight	4.54 kg (10 lbs)

Ordering Information

MSN2100-CB2F	100GbE 1U open Ethernet switch based on NVIDIA Spectrum, with Onyx, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and P2C airflow. Slide rail kit to be purchased separately.
MSN2100-CB2R	100GbE 1U open Ethernet switch based on NVIDIA Spectrum, with Onyx, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and C2P airflow. Slide rail kit to be purchased separately.
MSN2100-CB2FC	100GbE 1U open Ethernet switch based on NVIDIA Spectrum, with Cumulus Linux, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and P2C airflow. Slide rail kit to be purchased separately.
MSN2100-CB2RC	100GbE 1U open Ethernet switch based on NVIDIA Spectrum, with Cumulus Linux, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and C2P airflow. Slide rail kit to be purchased separately.
MSN2100-CB2RO	100GbE 1U open Ethernet switch based on NVIDIA Spectrum, with ONIE, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and C2P airflow. Slide rail kit to be purchased separately.
MSN2100-CB2FO	100GbE 1U open Ethernet switch based on NVIDIA Spectrum, with ONIE, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and P2C airflow. Slide rail kit to be purchased separately.
MSN2100-BB2F	The 40GbE 1U open Ethernet switch based on NVIDIA Spectrum has Onyx, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and P2C airflow. Slide rail kit to be purchased separately.
MSN2100-BB2R	The 40GbE 1U open Ethernet switch based on NVIDIA Spectrum has Onyx, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and C2P airflow. Slide rail kit to be purchased separately.
MSN2100-BB2FC	The 40GbE 1U open Ethernet switch based on NVIDIA Spectrum has Cumulus Linux, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and P2C airflow. Slide rail kit to be purchased separately.
MSN2100-BB2RC	The 40GbE 1U open Ethernet switch based on NVIDIA Spectrum has Cumulus Linux, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and C2P airflow. Slide rail kit to be purchased separately.
MSN2100-BB2FO	The 40GbE 1U open Ethernet switch based on NVIDIA Spectrum has ONIE, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and P2C airflow. Slide rail kit to be purchased separately.
MSN2100-BB2RO	The 40GbE 1U open Ethernet switch based on NVIDIA Spectrum has ONIE, 16 QSFP28 ports, 2 power supplies (AC), x86 CPU, short depth and C2P airflow. Slide rail kit to be purchased separately.
