1000Mbps Broadcom 9540-8i RAID Controller Cards For Data Centers 12Gb/S SAS 16GT/S PCIe Gen4 NVMe

Product Description

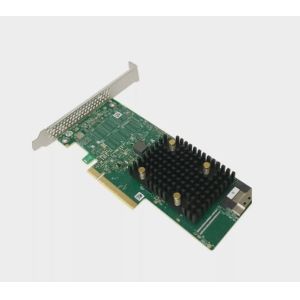

9540-8I RAID Card

The Broadcom 9540-8i RAID card is an enterprise-grade storage solution featuring high-performance 12Gb/s SAS/SATA and 16GT/s NVMe hybrid support. With hardware RAID acceleration (levels 0/1/10), it ensures data security in a low-profile design compatible with various servers. Optional CacheVault® cache protection prevents data loss during power failures, while support for up to 32 devices meets the high-throughput, low-latency demands of data centers.

Lifecycle	Active
Data Transfer Rates	12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported	SAS/SATA: 63, NVMe: 4
Generation	12 Gb/s
Host Bus Type	x8 lane PCI Express 4.0
I/O Processor / SAS Controller	SAS3808
Internal Connectors	1 x8 SFF-8654 (SlimSAS)
Internal Ports	8
Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF	>3,000,000 hours at 40°C
Operating Temperature	0°C to 55°C
OS	Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions	155.52 (+/-0.13) mm x 68.77 (+/-0.13) mm
RAID Levels	0, 00, 1, 10
Regulatory Certifications	Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES - 003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power	6.0W
Warranty	3 years, free technical support, advanced replacement option at support/warranty/internal-raid-hba
